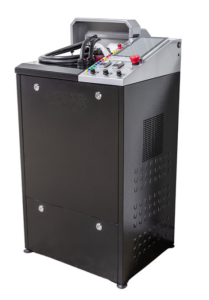

TSH-002A Test bench for diagnostics of alternators, starters and voltage regulators

The TSH-002A is a multifunctional diagnostic stand designed for fast and accurate diagnostics of alternators, starters, and alternator voltage regulators for passenger and commercial vehicles.

The test bench provides a comprehensive assessment of the technical condition of:

  1. Automotive alternators with a nominal voltage of 12V and 24V, with any terminal connections.
  2. 12V "Stop-Start" system alternators and "I-ELOOP" (Mazda) alternators.
  3. Automotive starters with a power rating of up to 6 kW and a nominal voltage of 12V and 24V, tested in no-load mode.
  4. 12V/24V voltage regulators tested separately from the alternator.

The TSH-002A test bench displays measured parameters in real-time oscillogram format, providing a complete view of the unit’s operation and enabling more precise fault diagnosis. The bench can also be equipped with special cables for quick connection to the alternator terminals, saving time when diagnosing similar alternators.

Features:

  • Display of measured data (current and voltage) in oscillogram format.
  • Database of alternators and voltage regulators.
  • Convenient unit mounting system on the bench.
  • Quick alternator connection using special cables (not included).
  • 9" touchscreen control panel.
  • Free software updates.

  • Supply voltage, V400
  • Power consumption, kW5.5
  • Software update:yes(Optional)
  • Quantity of storage batteries:2x 12V preferably AGM
  • Battery model (not included into supply slip) capacity from 45 up to 60 A·h
  • Storage battery charging No.1:yes
  • Storage battery charging No.2:yes
  • Rated voltage of the diagnosed units, V12, 24
  • Load on alternator:12 V -200 А, 24 V -100 А
  • Load adjustment (0-100%)smoothly
  • Drive speed, rpmfrom 0 to 3000
  • Drive speed adjustmentsmoothly
  • Drive type (unit drive)V-belt drive/Poly V-belt drive
  • Types of diagnosed alternators 12V:Lamp, COM (LIN, BSS), P-D, RLO, C, SIG. G, RVC, i-eLoop, F67, VALEO «I-StARS»
  • Types of diagnosed alternators 24V:Lamp, COM (LIN)
  • Types of diagnosed alternators 48V:doesn't test 48 V
  • Power of diagnosed starters, kWup to 6
  • Control:on the 7" touch screen
  • Automatic alternator test mode:yes
  • Alternator database:yes
  • Saving diagnostic results:yes
  • Printing of diagnostic results:yes
  • Internet connection:yes
  • Connection of peripheral devices:1 x USB Type-A
  • Width, m0,55
  • Depth, m0,45
  • Height, m1,05
  • Weight, kg111
  • Selecting the direction of rotation of the drive:available
  • Short-circuit protection during voltage regulator test:yes
  • Types of diagnosed voltage regulators:Lamp, COM (LIN, BSS), P-D, RLO, C, SIG, G, RVC
  • Voltage regulators database:yes
  • Power source:three-phase electrical network
  • Automatic starter test mode:no
